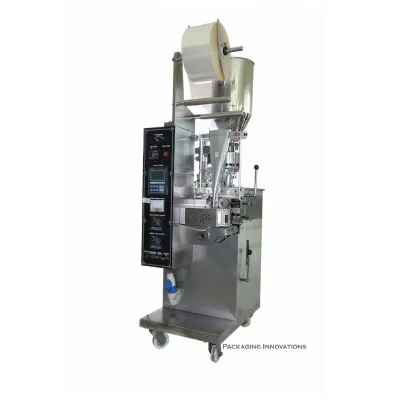

Vertical Packaging Machines, Models VP50JY/75JY
Vertical packaging machines for small bag sizes, designed for packaging liquid products. These machines are designed for liquid, viscous, and semi-liquid products and may also be referred to as liquid pouch filling machines. Liquid filling machines, Models VP-50JY/75JY, are suitable for packaging liquid, viscous, or semi-liquid products such as shampoo, salad dressing, dipping sauces, sauces, fish sauce, hair conditioner, lotion, and more. They can be used as- Shampoo packaging machine
- Hair conditioner packaging machine
- Fish sauce packaging machine
- Dipping sauce packaging machine
- Lotion packaging machine, and more
Small Pouch Packaging Machine for Liquid Products, Models VP-50JY/75JY
General Features | Small Pouch Packaging Machine for Liquid Products, Models VP-50JY/75JY
- Pouch width: 30-80 mm
- Pouch width: 30-115 mm
- Product dispensing by pump with adjustable filling weight
- Choice of three-side seal or four-side seal pouch configurations
- Machine structure made of stainless steel
- Two pouch length adjustment options: touchscreen adjustment and fixed gear
- Speed can be adjusted using an inverter or conveyor speed control knob
Optional Accessories Available for Additional Installation
- Product tapping device
- Date coding printer
- Product infeed conveyor
- Product discharge conveyor
Technical Specifications | Small Pouch Packaging Machine for Liquid Products, Models VP-50JY/75JY
| Model | VP-50JY | VP-75JY |
|---|---|---|
| Packaging Speed | 35-75 pouches/minute | 35-75 pouches/minute |
| Filling Capacity | 10-25 ml/pouch | 35-150 ml/pouch |
| Pouch Size W (mm) L (mm) | 30-80 mm 60-110 mm | 30-115 mm 100-150 mm |
| Electrical System | 1.5 kW / 220V / 50Hz | 1.4 kW / 220V / 50Hz |
| Film Thickness | 40-85 microns | 40-85 microns |
| Machine Dimensions (L x W x H) (mm) | 600 x 700 x 1800 | 650 x 850 x 1855 |
| Machine Weight (kg) | 360 kg. | |
| Pouch Configuration | 2 / 3 / 4 | 2 / 3 / 4 |
