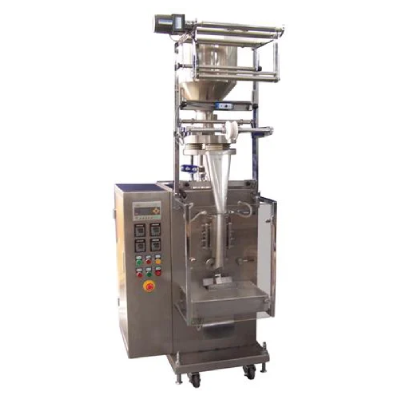

Vertical Packaging Machine, Model VP-E400
Dry and Small Granule Packaging Machine, Model VP-E400, is suitable for packaging dry products and small granules. It can package more than one type of product, such as rice, peanuts, Thai crispy lotus stem snacks, sunflower seeds, sugar, sago pearls, baked snacks, powdered coffee, candy, plant seeds, and more.
- Rice packaging machine
- Peanut packaging machine
- Thai crispy lotus stem snack packaging machine
- Sunflower seed packaging machine
- Sugar packaging machine
- Candy packaging machine
- Powdered coffee packaging machine, and more
Models VP-V400 / E400
V = Volumetric dosing plate with measuring cups (Volumetric)
E = Conveyor with product conveying compartments
Special Features of the Pouch Packaging Machine for Small Granules or Dry Products
- Can dispense more than one type of product into the same pouch
- Features 2 product feeding systems:
- Volumetric cup measuring system
- Vibrating feeding system
- Equipped with a nitrogen flushing system
- Optional air evacuation roller can be added
- Pouch width: 40-150 mm
Optional accessories available for additional installation
- Date coding printer
- Hanging hole punching system
- Product infeed conveyor
- Product discharge conveyor
Technical Specifications | Pouch Packaging Machine for Small Granules or Dry Products, Model VP-E400
| Model | VP-E400 |
|---|---|
| Packaging Speed | 20-70 pouches/minute |
| Filling Capacity | 60-400 ml/pouch |
| Pouch Size W (mm) L (mm) | 40-150 mm 50-210 mm |
| Electrical System | 2.0 kW / 220V / 50Hz |
| Film Thickness | 40-85 microns |
| Machine Dimensions (W x L x H) (mm) | 800 x 995 x 1825 |
| Machine Weight (kg) | 300 kg |
| Pouch Configuration | 1 |
