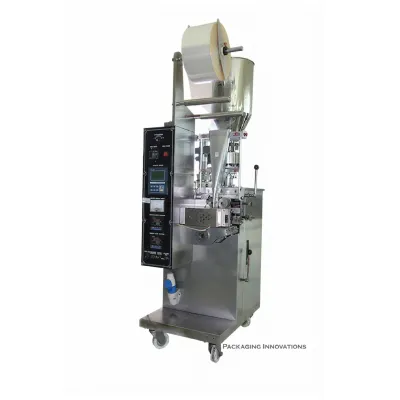

Vertical Packaging Machine, Model 75WB
Vertical packaging machine for small bag sizes, Model VP-30WB/75, suitable for packaging powdered and granular products such as candy, biscuits or small pieces of bread, salt, coffee, Ovaltine, flake-form chemicals, cappuccino powder, flour, and more.Optional accessories available for additional installation:
- Product tapping device
- Date coding printer
- Product infeed conveyor
- Product discharge conveyor
General Features
- Pouch width: 30-150 mm
- Small granule pouch packaging machine, Model 75WB
- Available pouch configurations: 3-side seal / 4-side seal
- Two pouch length adjustment options: touchscreen adjustment and fixed gear
- Uses a product feeding and conveying system
- Speed adjustable via inverter / conveyor speed control knob
- Easy setup and convenient operation
Technical Specifications | Small Granule Pouch Packaging Machine, Model VP-75WB
| Model | VP-75WB |
|---|---|
| Packaging Speed | 35-70 pouches/minute |
| Filling Capacity | 35-150 ml/pouch |
| Pouch Size W (mm) L (mm) | 30-150 mm 100-150 mm |
| Electrical System | 1.4 kW / 220V / 50Hz |
| Film Thickness | 40-85 microns |
| Machine Dimensions W x L x H (mm) | 650 x 850 x 1855 |
| Machine Weight (kg) | 470 kg |
| Pouch Configuration | 2 / 3 / 4 |
