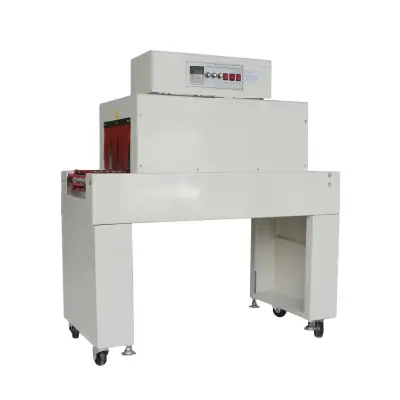

Small Shrink Tunnel Machine, Models ST-350B / ST-400B / ST-450B
Small Shrink Tunnel Machine, ST-Series After products are wrapped with shrink film and passed through the shrink tunnel, the film tightly conforms to the shape of the products, providing a clear, neat, and attractive appearance.
- L830 x W350 x H150 mm [ST-350B]
- L830 x W400 x H200 mm [ST-400B]
- L830 x W450 x H250 mm [ST-450B]
Features || Small Shrink Tunnel Machine, ST Series
- The conveyor belt is made of high-temperature-resistant material, while the supporting frame is made of metal capable of withstanding temperatures of up to 900 °C.
- Equipped with finned heaters that distribute heat through an air circulation system, providing fast and uniform heating while extending heater service life.
- Heat is evenly distributed throughout the tunnel in all directions, allowing the shrink film to conform smoothly and tightly to the product while maintaining an attractive appearance and product quality.
- Conveyor speed can be adjusted to suit the thickness of different types of film, ensuring that the film shrinks tightly around the product without distorting its shape.
Technical Specifications || Small Shrink Tunnel Machine, ST Series
| Specifications | Model ST-350B | Model ST-400B | Model ST-450B |
|---|---|---|---|
| Power Supply | 220 - 240 VAC, 50 Hz (1 Phase) | 380 - 415 VAC, 50 Hz (3 Phase) | |
| Heater Power | 6.5 kW (Adjustable) | 6.5 kW (Adjustable) | 8 kW (Adjustable) |
| Conveyor Speed | 0 - 10 m/min | ||
| Tunnel Size | 830 x 350 x 150 mm (L x W x H) | 830 x 400 x 200 mm (L x W x H) | 830 x 450 x 250 mm (L x W x H) |
| Maximum Product Size | 300 x 100 mm (W x H) | 350 x 150 mm (W x H) | 400 x 200 mm (W x H) |
| Tunnel Temperature | 0 - 200 °C | ||
| Maximum Loading | 5 kg | 5 kg | 10 kg |
| Machine Size | 1200 x 550 x 1100 mm (L x W x H) | 1200 x 640 x 1240 mm (L x W x H) | 1200 x 690 x 1290 mm (L x W x H) |
| Machine Weight | 75 kg | 80 kg | 100 kg |
| Suitable Film | POF, PVC, PP | ||
