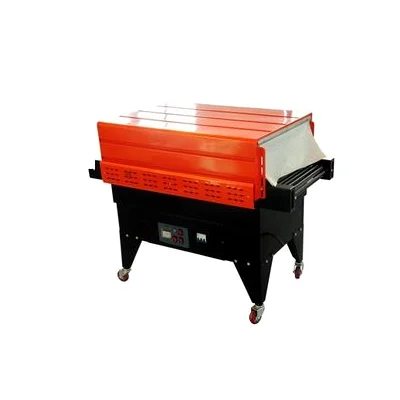

Small Shrink Tunnel Machine, BS-Series

Model BS-Series

เครื่องอบฟิล์มหด ขนาดเล็ก รุ่น : BS-Series

Features || Small Shrink Tunnel Machine, BS Series

  • Maintains a consistent heating temperature to ensure uniform and attractive shrink-wrapping results.
  • Conveyor speed and heating temperature can be adjusted to suit the type and thickness of the film being used.
  • The machine is constructed from extra-thick steel, providing a strong and durable structure with a modern design.
  • Supports high-volume production and can operate continuously with high efficiency.
  • The sides of the machine are lined with thermal insulation to reduce energy loss and prevent the external surfaces from becoming excessively hot, helping protect operators from potential hazards.
  • Equipped with an automatic circuit breaker that cuts off the power in the event of excessive current, helping prevent damage to the machine's internal electrical system.

Technical Specifications (Specifications) || Small Shrink Tunnel Machine, BS Series

SpecificationsModel BS-4535LAModel BS-4525A
Power Supply380 VAC, 50 Hz (3 Phase)220 VAC, 50 Hz (1 Phase)
Heater Power9.6 kW6.5 kW
Conveyor Speed0 - 10 m/min0 - 10 m/min
Tunnel Size1200 x 450 x 350 mm (L x W x H)900 x 450 x 250 mm (L x W x H)
Maximum Loading30 kg10 kg
Machine Size1600 x 700 x 1100 mm (L x W x H)1200 x 700 x 1000 mm (L x W x H)
Machine Weight120 kg90 kg
Suitable FilmPP, PET, PVC, POF, PEPP, PET, PVC, POF
