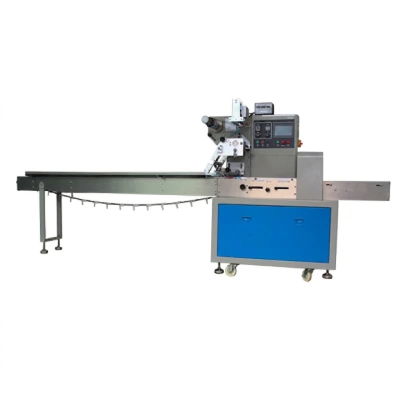

Horizontal Packaging Machine for Small Products, Model FW-250 PD
The FW-250 PD Horizontal Packaging Machine is designed for packaging small products by placing products on the guide rail at the rear of the machine. It is suitable for packaging individual products, as well as products placed on trays or inside boxes. The machine can be used for both food and non-food products, including bread, cookies, bakery products, wafers, Chinese pastries, mochi, mooncakes, peanut bars, sweet bean paste, candied fruits, dried bananas, Thai caramel, Vietnamese pork sausage, fermented pork sausage, Thai sausage, Chinese sausage, seaweed, spoons, straws, plastic cups, paper cups, soap, mosquito-repellent incense, toothbrushes, razors, cosmetics, wire, nuts, screws, electrical plugs, and other similar products.
Features || Horizontal Packaging Machine for Small Products, Model FW-250 PD
- Bag width: 30-110 mm.
- Bag length: 90-220 mm.
- Equipped with a date printing machine.
- Bag size and packaging speed can be adjusted through the Touch Screen.
- The Touch Screen control panel allows users to configure operating settings and displays error messages when the machine malfunctions.
- Machine operation is controlled by a PLC system, providing efficient and precise performance.
Technical Specifications || Horizontal Packaging Machine for Small Products, Model FW-250 PD
| Item | Technical Specifications |
|---|---|
| Model | FW-250 PD |
| Bag Size | L: 65-190 or 120-280 mm. | W: 30-110 and 30-80 mm. | H: Max. 40 mm. |
| Film Width | Max. 250 mm. |
| Film Thickness | 0.02 mm. |
| Packaging Speed | 30-200 bags/min. |
| Power | 220V 50Hz, 2.4 kW |
| Machine Dimensions | L 3,770 x W 670 x H 1,320 mm. |
| Machine Weight | 450 kg. |
| Film Type | PE, OPP/PP, OPP/CPP, PT/PE, KOP/CPP, PT/PE/X, AL/PE etc. |
