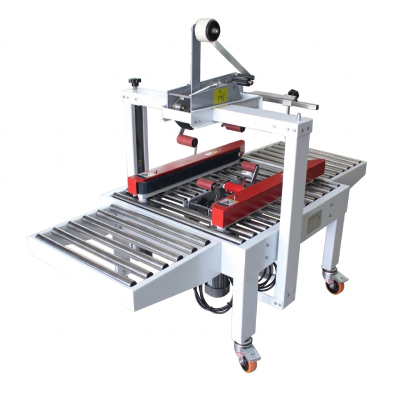

General Features || Semi-Automatic Carton Sealing Machine, CS-550 Series
- Seals the top and bottom of cartons simultaneously for fast and convenient operation.
- Easy carton size adjustment with a clear scale indicating the adjustment position.
- Equipped with a protective cover for the tape-cutting blade to ensure maximum operator safety.
- Automatically adjusts to accommodate cartons of various sizes.
- Supports connection to an automatic carton strapping machine in the production line.
- Stainless steel construction is available as an optional feature for specialized industrial applications.
Technical Specifications || Semi-Automatic Carton Sealing Machine, CS-550 Series
| Specifications | Model CS-550 | Model CS-550PB | Model CS-550PA | Model CS-550P |
|---|---|---|---|---|
| Power Supply | 220 / 240 VAC, 1 Phase | 220 / 240 VAC, 1 Phase | 220 / 240 VAC, 1 Phase | 220 / 240 VAC, 1 Phase |
| Power Consumption | 240 W | 360 W | 240 W | 360 W |
| Tape Width | 48 mm (2"), 60 mm (2.5"), 72 mm (3") | 48 mm (2"), 60 mm (2.5"), 72 mm (3") | 48 mm (2"), 60 mm (2.5"), 72 mm (3") | 48 mm (2"), 60 mm (2.5"), 72 mm (3") |
| Conveyor Speed | 0 - 20 m/min | 0 - 20 m/min | 0 - 20 m/min | 0 - 20 m/min |
| Maximum Carton Size | 500 x 500 mm (W x H) | 500 x 500 mm (W x H) | 500 x 500 mm (W x H) | 500 x 500 mm (W x H) |
| Minimum Carton Size | 150 x 150 x 120 mm (W x L x H) | 150 x 150 x 150 mm (W x L x H) | 150 x 150 x 140 mm (W x L x H) | 150 x 150 x 150 mm (W x L x H) |
| Machine Dimensions | 900 x 1020 x 1350 mm (W x L x H) | 900 x 1170 x 1350 mm (W x L x H) | 900 x 1170 x 1350 mm (W x L x H) | 900 x 1020 x 1350 mm (W x L x H) |
| Machine Weight | 120 kg | 180 kg | 170 kg | 140 kg |
