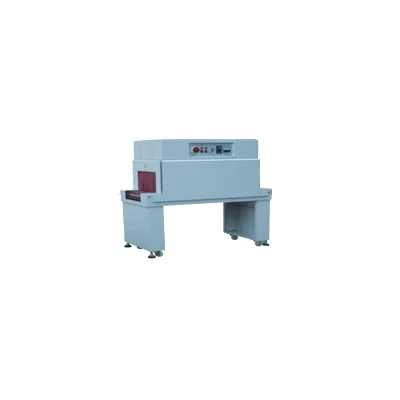

Features || Medium Shrink Tunnel Machine, Model STA-5030
- Supports shrinking various types of film, including POF, PE, PVC, and PP.
- Available in various sizes to accommodate different product dimensions, delivering smooth, tight, attractive, and high-quality packaging results.
- Equipped with casters for convenient relocation and easy installation within the work area.
- Extra-thick thermal insulation helps retain heat inside the tunnel, reducing energy consumption.
- The internal structure is filled with high-temperature-resistant fiberglass insulation and equipped with heat-shielding steel panels to prevent the external surfaces from becoming excessively hot and posing a hazard to operators.
- Conveyor speed and temperature can be adjusted to suit the type and thickness of the film.
- Helps protect products from moisture, dust, and unauthorized opening while helping maintain product freshness and an attractive appearance.
Technical Specifications || Medium Shrink Tunnel Machine, Model STA-5030
| Specifications | Model STA-5030 |
|---|---|
| Power Supply | 380 VAC, 50 - 60 Hz (3 Phase) |
| Power Consumption | 13 kW |
| Current | 30 A |
| Maximum Product Size | 450 x 250 mm (W x H) |
| Tunnel Size | 1300 x 500 x 300 mm (L x W x H) |
| Packaging Speed | 20 - 40 packs/min |
| Machine Size | 1600 x 770 x 1520 mm (L x W x H) |
| Machine Weight | 200 kg |
