Medium to Large Vertical Packaging Machines for Pellets and Granules

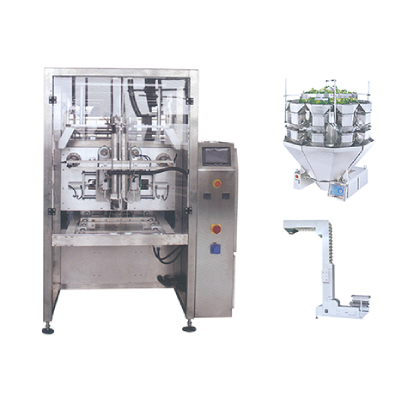

Medium to Large Vertical Packaging Machines for granules, pellets, and solid products. These medium- to large-size automatic wrapping and packaging machines can be used with all types of products mentioned above. The complete system consists of a main wrapping and packaging machine (Main Frame), a Z-bucket elevator, and a 10-head computerized weighing system (product discharge conveyor is optional).

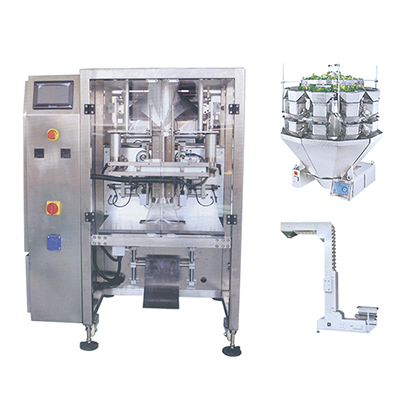

Specifications | Medium to Large Vertical Packaging Machine for Granules and Pellets, Model VF-K420ZM
| Model | Film Width | Pouch Size W x L | Machine Weight | Speed (bags/min) | Electrical System | |
|---|---|---|---|---|---|---|
| Voltage (V.) | Power (W.) | |||||
| VF-K420ZM | 420 mm | Width: 80 - 200 Length: 60 - 300 mm | 450 kg | 5 - 60 | 220V. | 2.4 kW. |
Specifications | Medium to Large Vertical Packaging Machines for Granules and Pellets
| Model | Film Width | Pouch Size W x L | Machine Weight | Speed (bags/min) | Electrical System | |
|---|---|---|---|---|---|---|
| Voltage (V.) | Power (W.) | |||||
| VF-K620ZM | 620 mm | Width: 150 - 300 Length: 80 - 430 mm | 800 kg | 5 - 40 | 220V. | 2.2 kW. |
| VF-K720ZM | 720 mm | Width: 180 - 350 Length: 100 - 480 mm | 900 kg | 5 - 20 | 220V. | 2.4 kW. |
| VF-K920ZM | 920 mm | Width: 180 - 450 Length: 100 - 580 mm | 900 kg | 5 - 20 | 220V. | 2.4 kW. |
| VF-K1200ZM | 1,200 mm | Width: 220 - 660 Length: 140 - 700 mm | 1,000 kg | 5 - 10 | 220V. | - |
