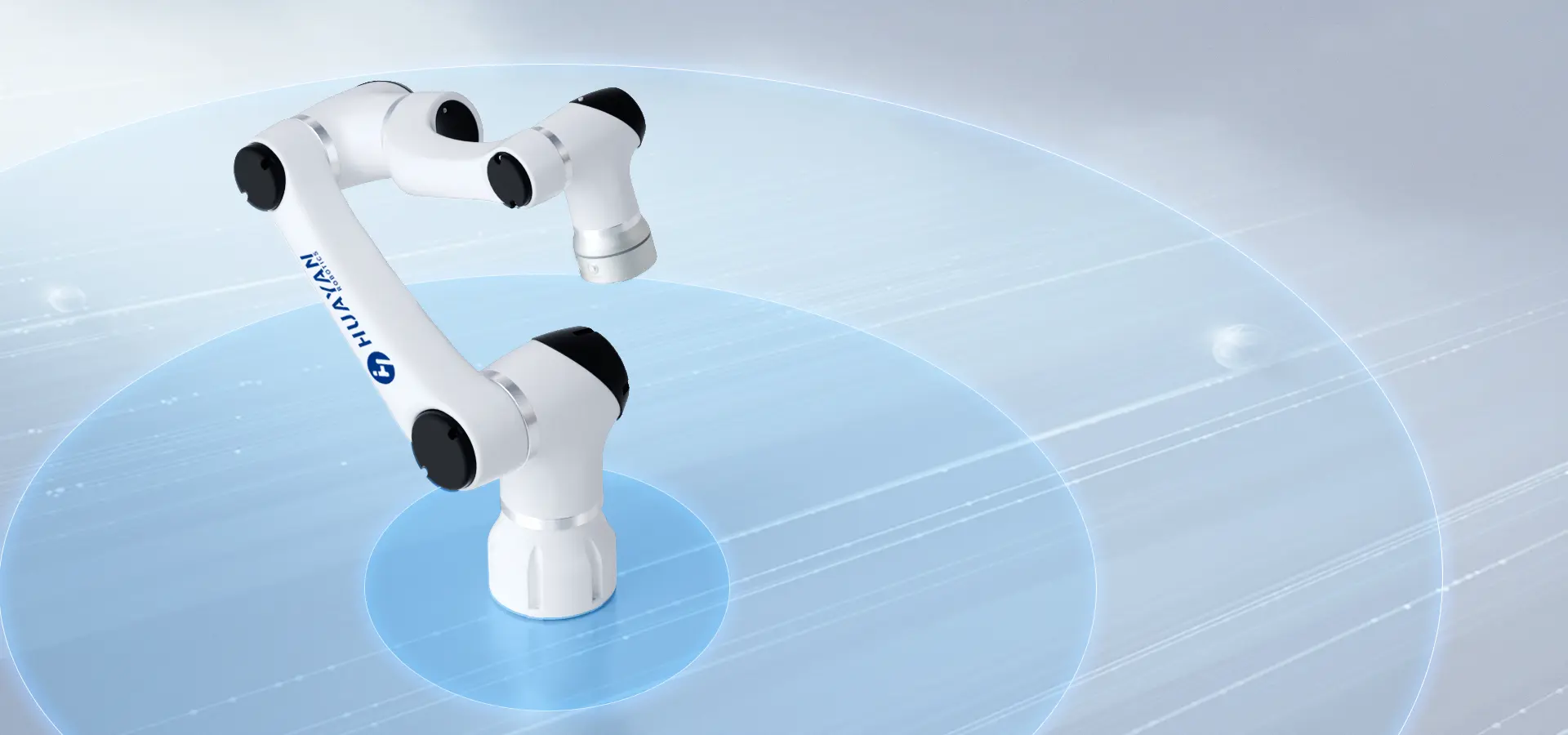

- Elfin-PRO Collaborative Robot: It developed based on the Elfin collaborative robot, retaining its core strengths while enhancing its capabilities by integrating cutting-edge AI technology and end-force control.
- Enhanced Capabilities and Integration: It not only has all the advantages of the Elfin collaborative robot, such as a variety of models, easy deployment, high precision, high flexibility, double-joint module design and modular design but it also has upgraded the product capability through the integration of cutting-edge AI technology, End-force control integration, end vision integration.
- Improved Surface Treatment Process: It adopts a new, elegant, practical surface treatment process that is more stable and reliable. With all these advantages, the Elfin PRO collaborative robot system offers a better human-robot collaboration experience and can support broader application scenarios.
| Model | E03-Pro | E05-Pro | E05L-Pro | E10-Pro | E10L-Pro | E12-Pro | E15-Pro |
|---|---|---|---|---|---|---|---|
| Weight (น้ำหนักหุ่นยนต์) | 18 kg | 25 kg | 26 kg | 43 kg | 45 kg | 72 kg | 60 kg |
| Payload (น้ำหนักบรรจุสูงสุด) | 4 kg | 7 kg | 5 kg | 12 kg | 10 kg | 12 kg | 15 kg |
| Reach (ระยะเอื้อมสูงสุด) | 590 mm | 800 mm | 950 mm | 1000 mm | 1300 mm | 1600 mm | 1500 mm |
| Power Consumption (การใช้พลังงาน) | 100W | 180W | 180W | 350W | 350W | 600W | 600W |
| Repeatability (ความแม่นยำในการซ้ำตำแหน่ง) | ±0.02 mm | ±0.02 mm | ±0.02 mm | ±0.03 mm | ±0.03 mm | ±0.05 mm | ±0.05 mm |
| Degree of Freedom (จำนวนแกน) | 6 แกน | ||||||
| IP Classification (ระดับการกันน้ำกันฝุ่น) | IP66 (สำหรับตัวหุ่นยนต์) | ||||||
| Communication (การสื่อสาร) | TCP/IP, Modbus TCP, Profinet (Optional), EtherNet/IP (Optional) | ||||||
